Features
Inquiry Us
1. Machine adopts the latest PIC microcontroller program control technology, precise control capacitance working voltage;

2.  Main components configuration, the original import components, assure product performance;

3. Computer multivariate design interior structure itself, the platoon is reasonable, a small portable;

4. Traces small, the welding deformation;

5. Welding scope, suitable for welding of carbon steel, stainless steel, copper alloys, aluminum material;

6. Time is short, the work itself charging high efficiency;

7.Screen shows working voltage, stepless adjustment, need not shut off the power always switch;

8.Rate is very low, the host had average trouble-free use one million times above;

Operation is simple, convenient, easy to learn;

9. Welding torch choose imported from Germany itself to micromanage switch, life, it is the Lord 60 million times of capacitance life 1/3,   Lord Capacitance life 200million times !

Parameter       Model

STC-1600

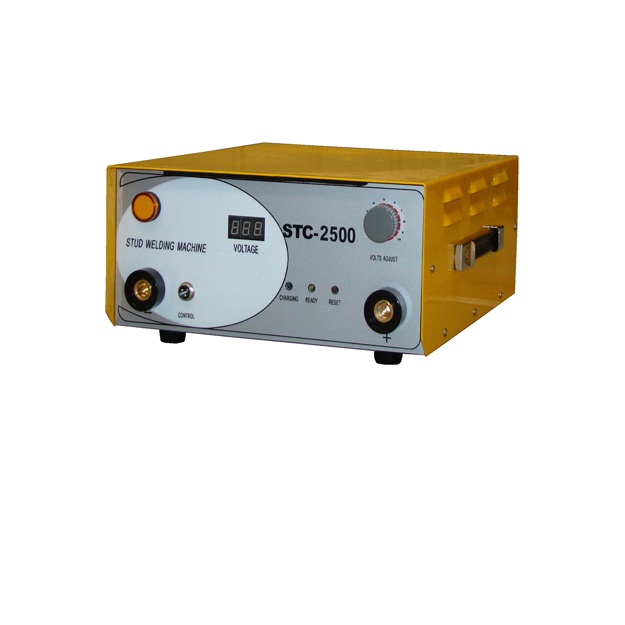

STC-2500

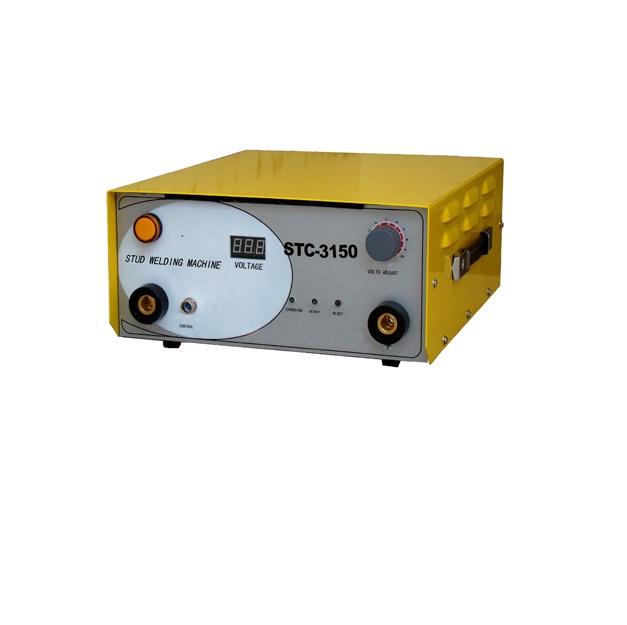

STC-3150

Welding current

output mode

Capacitor discharge

Capacitor

 specifications(μF)

99000

132000

165000

Power

400W

Welding speed

(piece/min)

15—30

Input power voltage

(V)

220V

Working voltage(V)

30—198V

frequency(Hz)

50---60

Cooling mode

Efflux-cooled

Degree of protection

IP23

Welding stud length

(mm)

Standard 5---35

Stud welding range

(stud

diameter mm/ Type of metal)

3—8/ Low-carbon steel

3—10/ Low-carbon steel

3—12/ Low-carbon

 steel

3—8/ Stainless

steel

3—10/ Stainless

steel

3—10/ Stainless

steel

3—7/ Aluminum

 alloy

3—8/ Aluminum

 alloy

3—8/ Aluminum

 alloy

3—6/ Copper

alloy

3—6/ Copper alloy

3—8/ Copper alloy

Dimension(mm)

L*W*H



430*350*155

GrossWeight(Kg)

31KG

31KG

31KG
