Features
Inquiry Us

1.The control system adopted PIC single chip processor control.can adjust

the welding time.

2.Can be operated freely,high welding strength,small heat-affected zone,

the workpiece no deformation.

3.Over-load design,over-heat protect system which can keep the machine

working in safe and stable.

4.Enhance the body test function torch.

5.Inside parts use Diversified computer design,scientific and rational layout,

 thermal efficiency, continued to work long hours.

6.According the welding requirement,we can choose gas protection and

ceramic ring protection.

7.Wide voltage regulator that automatically compensate for voltage fluctuations

8.Can weld on the workpiece which surface have oxide layer and electroplating.

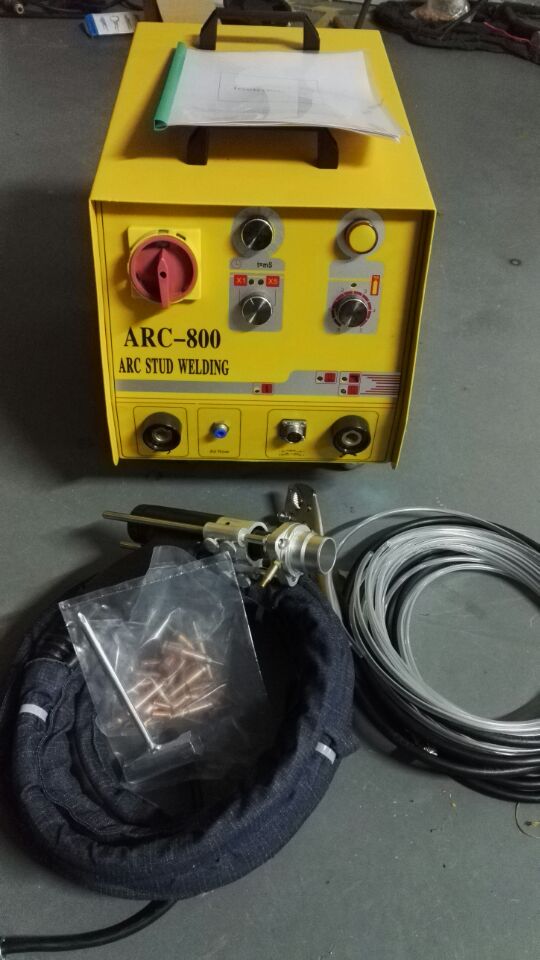

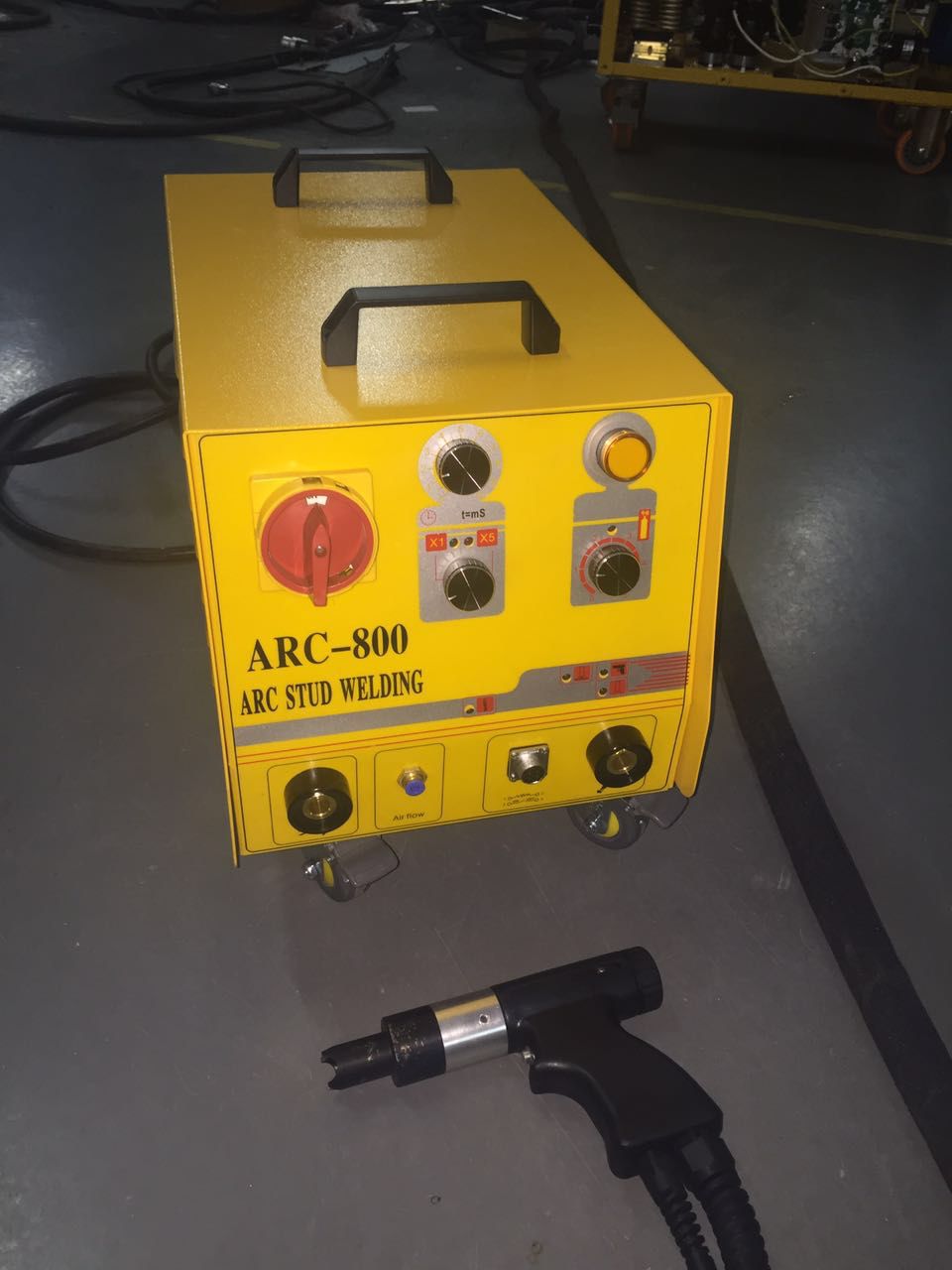

Model

ARC—800

Welding range(mm)

ø2-12

Max welding current(A)

800A

Welding time range(ms)

30--600

Welding speed piece/min/welding diameter(mm)

15-25piece/ 4-6mm

3-10piece/ 8-12mm

Input voltage (V)

3 phase,380V-410V 50Hz

Max power

30KVA

Cooling method

      Efflux-cooled

Dimension (mm)

L400*W300*H550

Degree of protection

IP23

no-load voltage

DC 60V

Weight (Kg)

50
