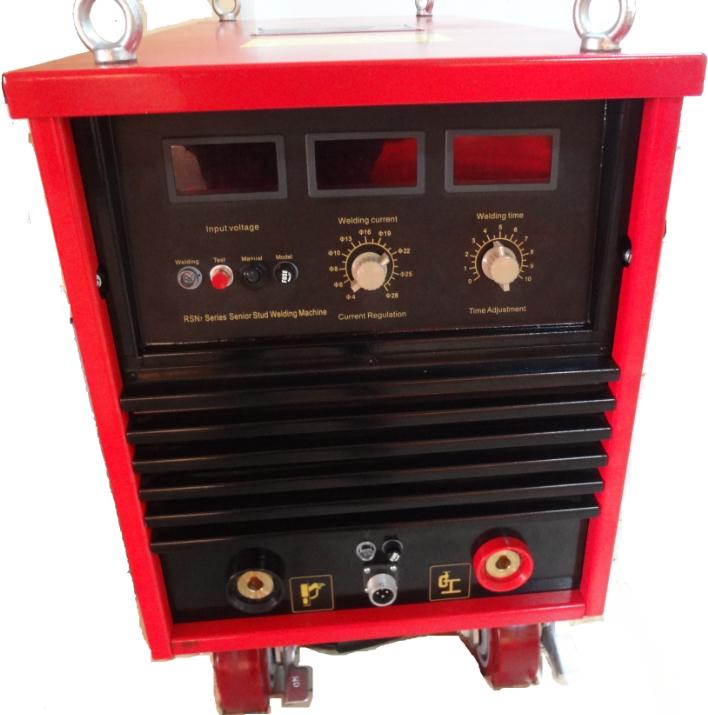

Technical parameters of RSN7 Series Stud Welders
|
Types |
RSN7—2000 |
RSN7—2500 |
RSN7—3150 |
|
Welding scope |
Φ4mm—Φ24mm |
Φ4mm—Φ28mm |
Φ4mm—Φ36mm |
|
Welding current |
300A—2000A |
300A—2500A |
300A—3150A |
|
Welding time |
0.1S—3.0S |
0.1S—3.0S |
0.1S—3.0S |
|
Welding speed |
Φ22 10/m |
Φ28 10/m |
Φ36 8/m |
|
Input power |
AC3~280V±440V |
AC 3~280V±440V |
AC 3~280V±440V |
|
Rating capacity |
120KW |
135KW |
168KW |
|
Power switch |
125A |
160A |
225A |
|
Protection level |
Ip23 |
Ip23 |
Ip23 |
|
Cooling model |
Air cooling |
Air cooling |
Air cooling |
|
Dimensions (L,W,H) |
880mm×398mm× 680mm |
880mm×398mm× 680mm |
890mm×398mm× 800mm |
|
Weight |
126kg |
135kg |
168KG |
